Introductory Class

Subject: Web UI and Content Management

The Foundation of the Web

Network

A collection of connected computers and devices that can share resources and data. This can be as small as a Local Area Network (LAN) in your home or as vast as the internet.

Internet

A global network of computers. It’s the massive infrastructure of cables, routers, and servers that connects billions of devices worldwide.

World Wide Web

Often used interchangeably with the internet, it’s a system of interconnected documents and web resources that anyone can access anywhere from until they are on a network.

Deep Web

This refers to parts of the World Wide Web whose contents are not indexed by standard web search engines. It’s the opposite of the “Surface Web,” which is what you can find using Google or any other search engine.

Client & Server Architecture

The web operates on a client-server model, which involves two main components:

Client: The user’s computer or device, running a web browser that requests information.
Server: A powerful computer that stores web pages and applications and sends the requested information back to the client.

2 Main components are:

Hardware: The physical parts of the system, such as the user’s computer (client) and the web server.
Software: The programs running on the hardware, such as the web browser (client) and the web server application (e.g., Apache).

Network Protocols

These are the established rules of communication that clients and servers use to understand each other. When you type a URL into your browser, you are sending an HTTP request to a server.
Examples: TCP/IP, HTTP, HTTPS, FTP, SMTP, DNS, SSH, etc.

UI/UX Design Principles

Before we build, we must understand the user. User Interface (UI) and User Experience (UX) are critical to a project’s success.

Fun

Historically UI was called Human-Computer Interaction(HCI).

UI vs. UX

UI (User Interface): This is what the user sees and interacts with. It’s the visual design, layout, and interactive elements.
UX (User Experience): This is the user’s overall feeling and experience while interacting with the product. Is it easy to use? Is it efficient? Is it enjoyable?

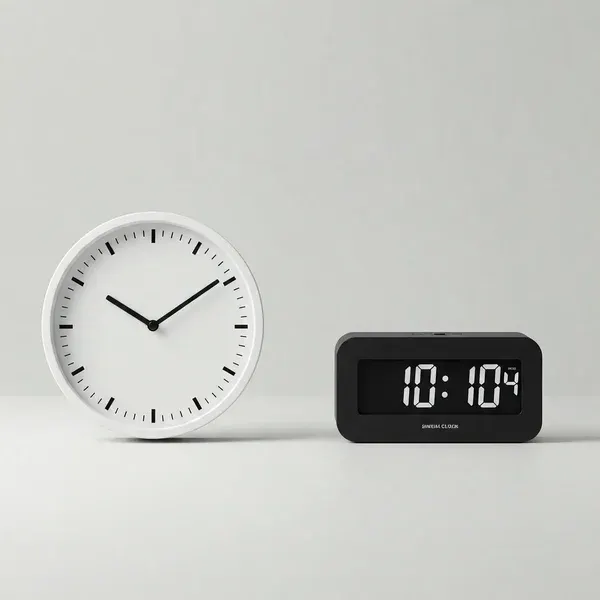

Case Study: Tick Tock

Analog clock vs digital clock, which is more alarming for ex you need to catch a train what will make you go faster a digital clock which only shows you what time it is right now without any future perspective as to where it is visually without thinking about it or the analog clock which has hands which is currently at 9:00 and i need to catch at 10:00 so there is a visual queue of how much time is there and its always ticking so…

UI

What users see and interacts with,
Key Aspects:
1. Visual Design
  - Colors
  - Typography
  - Imagery
  - Icon
  - Branding, etc…
2. Layout & Grids
  - How an elements are formatted deepening on different screens.
3. Interactive Elements
  - Buttons,
  - Forms,
  - Sliders, etc.
4. Responsiveness
  - How the design is adapted to different type of screen.

Managing UI Complexity

Actual Complexity

Number of features, functions, and data points a system has.

Perceived Complexity:

How difficult the user feels the interface is, regardless of its actual complexity. The goal is to minimize perceived complexity.

[!”Larry Tesler’s Law of conservation of Complexity”] Suggests every single system WILL have certain amount of inherent complexity, that cannot be reduced, It can only be shifted.

Principles for Simplicity

Making the UI’s extremely simple for the users.
User cognitive load is often the MOST EXPIENSIVE form of complexity.

Feature Prioritization

Focus on core user needs. Cut, hide, or combine non-essential features.

Progressive Disclosure

Show only essential information. This reduces cognitive load.
Reveal more advanced or detailed options on demand (e.g., an “Advanced Settings” button or a “Read More” link).

Minimizing number of clicks and make navigation intuitive.

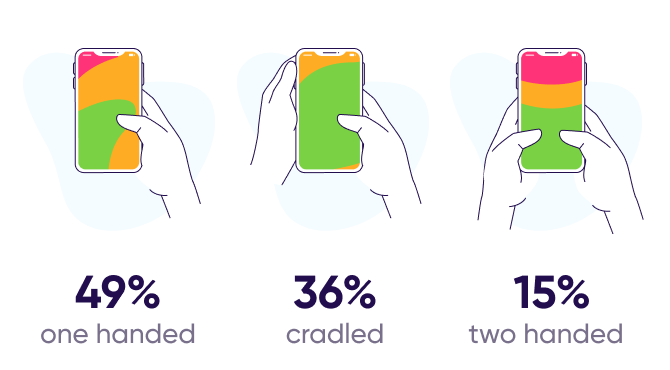

Placing frequently used actions in easily accessible areas (e.g., near the bottom of a mobile screen for easy thumb reach).

Clear Calls-to-Action (CTAs)

Use clear, action-oriented language and visually distinct designs for buttons and links so users know exactly what to do next.

Factors That Increase Perceived Complexity

Too many features/options overwhelming the user.
Inconsistent design that breaks user expectations.
Cluttered layouts that make information hard to find.
Unclear navigation that makes users feel lost.
Technical jargon instead of plain language.
Lack of visual hierarchy where everything seems equally important.

Requirement vs Complexity

Roles that shape the complexity

User Requirements
- WHAT users NEED needs to accomplish.
- CLEAR goals, tasks*, pain points.
Business Requirement
- DEFINE’s system purpose business perspective.
Technical Constraints/Requirements
- Technologies being used.
Regulatory/Compliance Requirements
- Legal and compliance standards that must be met.

User-Centric Approach

Extensive Research
- Understand your users’ goals, pain points, and mental models.
User Testing
- Testing the design on “real users” to identify the points of confusion.
Personas & User Journeys
- Create profiles of typical users (personas) and map out their workflows (journeys) to ensure the design meets their needs at every step.

User Experience

Overall process/experience that the user gets while working with your interface.
1. Is it easy to learn? “COMPLEXITY.”
2. Can people with disabilities use it? “ACCESSIBILITY.”
  - ex: “Jump/skip to content” button is present on some website undeneeth the navbar that can be used by the softwares for people that audibilty udnestad the website
3. How context is structured and navigation is put in place? “Information Architecture”

Languages for web:

HTML
XML
CSS
JavaScript
PHP and many more…

Web Stacks

A “stack” is the collection of software required to run a web application. A very common example is the LAMP Stack:
- Linux: The operating system.
- Apache: The web server software.
- MySQL/MariaDB: The database management system.
- PHP/Perl/Python: The server-side programming language.

HTML

HyperText Markup Language (HTML) provides the basic structure and content of a page.

Key HTML5 Semantic Tags

Instead of simply using <div>, use the following for better structure and accessibility:
1. <head>
2. <nav>
3. <article>
4. <section>
5. <aside>
6. <footer>

Enhanced Form Inputs

<inpit type="">

HTML5 added specific input types for better user experience:

color
date
email
number
url
search
tel apart from other existing types text, password, submit, reset, radio, and checkbox.

Other Important HTML5 Tags

<audio>: Embeds sound content.
<video>: Embeds video content.
<canvas>: Used to draw graphics on the fly, via JavaScript.
<svg>: Defines Scalable Vector Graphics for images that scale perfectly at any size.

CSS

Cascading Style Sheets (CSS) is the language used to describe the presentation and styling of an HTML document.

Common CSS Properties

Typography:
- font-family
  - To set the font for an item on the page
  - Example: p {font-family: "Arial", sans-serif;}
- font-size
  - To set the size/height of the font
  - font-size: 16px
- color
  - Can be used to set the text color of an element
  - Several format for the color
    - Named:
      - p {color: blue;}
      - p {color: trasnaprent;}
    - rgb/rgba:
      - p { color: rgb(10, 200, 255); } or p { color: rgba(10, 200, 255, 0.5); } the ‘a’ is for alpha/transparency).
    - Hex:
      - p {color: #3A2BFF;}
- text-align
Spacing: margin (outside an element), padding (inside an element)
Layout: display, position, width, height

Common Units

px: Pixels (a fixed-size unit).
%: Percentage (relative to the parent element).
em: Relative to the font-size of the element.
vh: Relative to 1% of the height of the viewport.

Font-size support for more readability

xx-small
x-small
small
medium
large
x-large
xx-large
Line-height

JavaScript

A programming language and core technical of the world wide web alongside the HTML and CSS.
JavaScript can provide interaction and manipulation with the HTML DOM(Document Object Model).

[!”Fun-Fact”] JavaScript**≠**Java 🤭

Variables: var myName = “Dexter”;
Data Types: Numbers, Strings, Objects, Arrays, Booleans.
Operators: Arithmetic (+, -, *, /) and Comparison (==, !=, >, <).
Conditional Statements: if…else, for loops, while loops.
String Methods: myName.length, myName.charAt(0), myName.indexOf("e").

JavaScript methods and properties

To manipulate the string or get information about it

var myname="Dexter"
var n = myname.length();

Method	Description	Example
`charAt(index)`	Returns the character at the specified index	`"Hello".charAt(0)` → `"H"`
`charCodeAt(index)`	Returns the Unicode value of the character at the specified index	`"Hello".charCodeAt(0)` → `72`
`concat(str1, str2, ...)`	Joins two or more strings	`"Hello".concat(" World")` → `"Hello World"`
`endsWith(searchString)`	Checks if the string ends with the given value	`"Hello World".endsWith("World")` → `true`
`includes(searchString)`	Checks if the string contains the given value	`"Hello World".includes("World")` → `true`
`indexOf(searchString)`	Returns the first index of the given value	`"Hello World".indexOf("o")` → `4`
`lastIndexOf(searchString)`	Returns the last index of the given value	`"Hello World".lastIndexOf("o")` → `7`
`match(regexp)`	Matches the string against a regular expression	`"Hello World".match(/World/)` → `["World"]`
`padEnd(length, padString)`	Pads the string from the end	`"Hello".padEnd(8, "x")` → `"Helloxxx"`
`padStart(length, padString)`	Pads the string from the start	`"Hello".padStart(8, "x")` → `"xxxHello"`
`repeat(count)`	Repeats the string a specified number of times	`"Hi ".repeat(3)` → `"Hi Hi Hi "`
`replace(searchValue, newValue)`	Replaces a value in the string	`"Hello World".replace("World", "There")` → `"Hello There"`
`search(regexp)`	Returns the index of a match with a regular expression	`"Hello World".search(/World/)` → `6`
`slice(start, end)`	Extracts a portion of the string	`"Hello World".slice(0, 5)` → `"Hello"`
`split(separator)`	Splits the string into an array	`"Hello World".split(" ")` → `["Hello", "World"]`
`startsWith(searchString)`	Checks if the string starts with the given value	`"Hello World".startsWith("Hello")` → `true`
`substr(start, length)`	Extracts part of a string (from `start` for `length`)	`"Hello World".substr(6, 5)` → `"World"`
`substring(start, end)`	Extracts characters between two indices	`"Hello World".substring(0, 5)` → `"Hello"`
`toLowerCase()`	Converts the string to lowercase	`"Hello".toLowerCase()` → `"hello"`
`toUpperCase()`	Converts the string to uppercase	`"Hello".toUpperCase()` → `"HELLO"`
`trim()`	Removes whitespace from both ends	`" Hello ".trim()` → `"Hello"`

Arrays

var animals = ["Cat","Dog", "Rat"]; to access an element animals[0] #cat

Conditional Statement

1. `if` Statement

Executes a block of code if a condition is true.

let age = 20;

if (age >= 18) {
  console.log("You are an adult.");
}

2. `if...else` Statement

Runs one block if the condition is true, and another if it’s false.

let age = 16;

if (age >= 18) {
  console.log("You are an adult.");
} else {
  console.log("You are a minor.");
}

3. `else if` Statement

Allows you to check multiple conditions in sequence.

let score = 75;

if (score >= 90) {
  console.log("Grade: A");
} else if (score >= 80) {
  console.log("Grade: B");
} else if (score >= 70) {
  console.log("Grade: C");
} else {
  console.log("Grade: D");
}

4. `switch` Statement

Used to perform different actions based on different conditions (often used for fixed-value comparisons).

let fruit = "apple";

switch (fruit) {
  case "apple":
    console.log("You chose apple.");
    break;
  case "banana":
    console.log("You chose banana.");
    break;
  default:
    console.log("Unknown fruit.");
}

5. `for` Loop

Repeats a block of code a number of times.

for (let i = 1; i <= 5; i++) {
  console.log("Count: " + i);
}

6. `while` Loop

Runs a block of code while a condition is true.

let i = 1;

while (i <= 3) {
  console.log("Iteration: " + i);
  i++;
}

7. `do...while` Loop

Similar to while, but runs the code at least once before checking the condition.

let j = 1;

do {
  console.log("Value: " + j);
  j++;
} while (j <= 2);

Statement	Use Case
`if`	Run code if a condition is true
`if...else`	Choose between two blocks
`else if`	Check multiple conditions
`switch`	Choose from multiple values
`for`	Loop a specific number of times
`while`	Loop while condition is true
`do...while`	Loop at least once, then check

Document Object Model

The DOM is a representation of the page that JavaScript can manipulate.
document.getElementById("someId").innerHTML = "New content!";

Method / Property	Description	Example
`document.getElementById()`	Get an element by its unique ID.	`let title = document.getElementById('heading');`
`document.querySelector()`	Get the first element that matches a CSS selector.	`let firstItem = document.querySelector('.item');`
`document.querySelectorAll()`	Get all elements that match a CSS selector (NodeList).	`let items = document.querySelectorAll('li');`
`element.addEventListener()`	Attach an event like click or input to an element.	`button.addEventListener('click', function() { ... });`
`document.createElement()`	Create a new HTML element dynamically.	`let newDiv = document.createElement('div');`
`element.appendChild()`	Add a new child node to an element.	`parent.appendChild(newDiv);`
`element.textContent`	Get or set the text content of an element.	`element.textContent = 'Hello World';`
`element.innerHTML`	Get or set the HTML content inside an element.	`element.innerHTML = '<strong>New</strong> content';`
`element.style`	Modify inline styles of an element.	`element.style.color = 'red';`
`element.setAttribute()`	Set an attribute (like class or href) on an element.	`element.setAttribute('class', 'active');`
`element.getAttribute()`	Get the value of an attribute from an element.	`let id = element.getAttribute('id');`
`element.classList.add()`	Add a class to an element.	`element.classList.add('highlight');`
`element.classList.remove()`	Remove a class from an element.	`element.classList.remove('hidden');`
`element.remove()`	Remove an element from the DOM.	`element.remove();`
`document.body`	Access the `<body>` element directly.	`document.body.style.backgroundColor = 'lightgray';`
`document.title`	Get or set the title of the document.	`document.title = 'New Page Title';`

XML

eXtensible Markup Language (XML) is a markup language designed to store and transport data using custom tags.
Used to create your own tag/structure.

Hypertext preprocessor (PHP)

A general purpose scripting language for web development.
It’s usually processed on a web server by a PHP interpreter.
Usually implemented as a module.
PHP can be used for handling users input.
Dynamic page content generation.
DBMS communications and more.

AJAX

Asynchronous JavaScript and XML (AJAX) is a concept that allows a web page to request data from a server and update parts of the page without a full refresh, using the XMLHttpRequest object.
AJAX is not exactly a complete technology.
It is a programming concept implemented with JavaScript.

The `XMLHttpRequest` (XHR) Object

It’s a built-in browser object that lets you make HTTP requests in JavaScript.

Working of AJAX

An event takes place on the client side(web page), Like page is loaded, Button is clicked, etc.
Event is captured via JavaScript event handler
- Using a JavaScript function; by creating a XMLHttpRequest Object.
  - Send a request to web-server with select value.

Fun

XMLHttpRewquest is maintained by WHATWG same people who is working on HTML5.

Key Properties:

readyState: Holds/returns the status of the request.
- State of the of the object are as follows:
  - 0: UNINITIALIZED - open() has not been called yet.
  - 1: OPEN - open() has been called.
  - 2: SENT - send() has been called, and headers/status are available.
  - 3: RECEIVING - Downloading; responseText holds partial data.
  - 4: LOADED - The operation is complete.
onreadystatechange: An event handler that is called whenever the readyState property changes.
responseText: Returns the server response as a string of text.
responseXML: Returns the server response as an XML document.
status: The HTTP status code (e.g., 200 for “OK”, 404 for “Not Found”).
statusText: The HTTP status text (e.g., “OK”, “Not Found”).

Key Methods:

Method / Property	Description
`open(method, URL, async)`	Configures the request. - `method`: HTTP method (e.g., `'GET'`, `'POST'`) - `URL`: server endpoint (relative or absolute) - `async`: boolean (usually `true`)
`send(content)`	Sends the configured request. - For POST/PUT requests, `content` is the data to be sent.
`setRequestHeader(label, value)`	Sets a request header (e.g., `'Content-Type'`, `'Authorization'`). Must be called after `open()`.
`getResponseHeader(headerName)`	Retrieves the value of a specific response header after the response is received.
`getAllResponseHeaders()`	Returns all response headers as a single string, with each header on a new line.
`abort()`	Stops the current request immediately.

`XMLHttpRequest` Example:

<div id="response-container">Original Content</div>
<button id="load-data-btn">Load Data from Server</button>

<script>
document.getElementById('load-data-btn').addEventListener('click', function() {
    // 1. Create a new XMLHttpRequest object
    const xhr = new XMLHttpRequest();

    // 2. Define what happens on state changes
    xhr.onreadystatechange = function() {
        // readyState 4 means the request is finished and response is ready
        // status 200 means "OK" (the request was successful)
        if (this.readyState == 4 && this.status == 200) {
            // 5. Update the DOM with the server's response
            document.getElementById('response-container').innerHTML = this.responseText;
        }
    };

    // 3. Configure the request
    xhr.open('GET', 'data.txt', true); // data.text file maye contain anything.

    // 4. Send the request
    xhr.send();
});
</script>

jQuery

jQuery is a library that simplifies HTML DOM traversal and manipulation, as well as event handling and Ajax.

BiO Digital Garden

Explorer

Introductory Class for Web UI and Content Management

Introductory Class

The Foundation of the Web

Network

Internet

World Wide Web

Deep Web

Client & Server Architecture

2 Main components are:

Network Protocols

UI/UX Design Principles

UI vs. UX

Case Study: Tick Tock

UI

Managing UI Complexity

Actual Complexity

Perceived Complexity:

Principles for Simplicity

Feature Prioritization

Progressive Disclosure

Streamlined Navigation

Clear Calls-to-Action (CTAs)

Factors That Increase Perceived Complexity

Requirement vs Complexity

User-Centric Approach

User Experience

Languages for web:

Web Stacks

HTML

Key HTML5 Semantic Tags

Enhanced Form Inputs

Other Important HTML5 Tags

CSS

Common CSS Properties

Common Units

Font-size support for more readability

JavaScript

JavaScript methods and properties

Arrays

Conditional Statement

1. if Statement

2. if...else Statement

3. else if Statement

4. switch Statement

5. for Loop

6. while Loop

7. do...while Loop

Document Object Model

XML

Hypertext preprocessor (PHP)

AJAX

The XMLHttpRequest (XHR) Object

Working of AJAX

Key Properties:

Key Methods:

XMLHttpRequest Example:

jQuery

Graph View

Table of Contents

Backlinks

1. `if` Statement

2. `if...else` Statement

3. `else if` Statement

4. `switch` Statement

5. `for` Loop

6. `while` Loop

7. `do...while` Loop

The `XMLHttpRequest` (XHR) Object

`XMLHttpRequest` Example:
